How thin can a foldable phone get before physics says “no”? Samsung’s new Galaxy Z TriFold pushes that limit, with a profile of just 3.9 millimeters at its thinnest panel despite packing two hinges, three distinct display sections, and a 10‑inch AMOLED screen. The device’s engineering is as much a statement of capability as it is a consumer product though most of the world won’t be able to buy it until well into 2026.
Samsung’s rollout strategy is deliberately staggered. The TriFold will launch first in South Korea on December 12, 2025, with limited in-store previews starting on December 9. Following that will be launches in China, Taiwan, Singapore, and the UAE, before the product finally reaches US shores sometime in Q1 2026. According to Bloomberg, shipments will be in “very limited volume,” underlining the fact that this launch is as much technology pilot as mass-market push. “this release is designed to validate durability, hinge architecture and software optimization while gathering real‑world user insights ahead of broader commercialization.” says Liz Lee of Counterpoint.

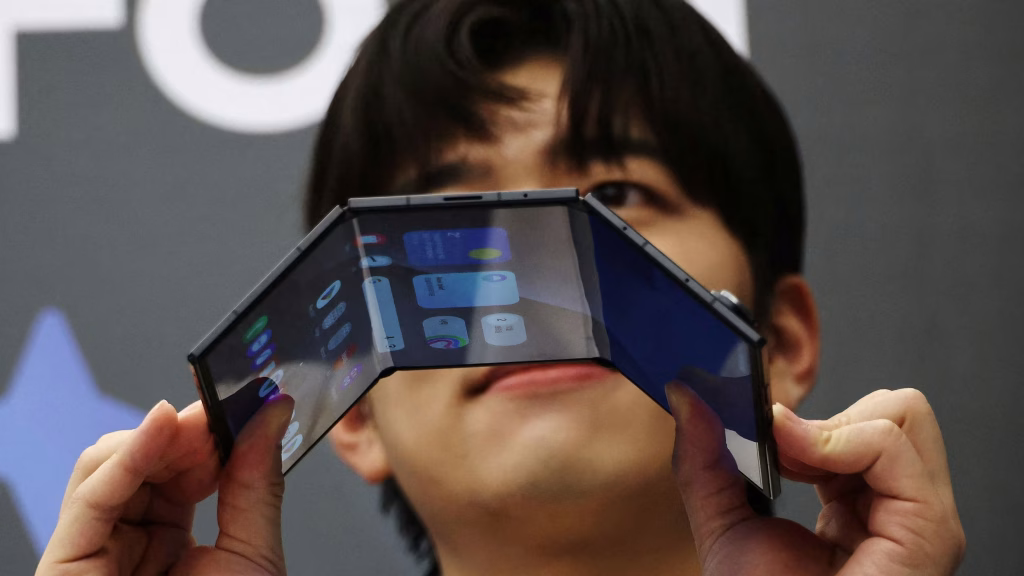

The TriFold’s physical architecture is very different from Samsung’s Fold series to date. Rather than adopting an outward‑folding design as found on Huawei’s Mate XT, Samsung’s strategy places the fragile folding display on the inside, shielded by a separate 6.5‑inch cover screen. The two side panels fold inward over the central section, forming a U‑shaped closure. Each panel exhibits a different thickness: 3.9mm with a SIM tray on one side, 4.2mm housing the USB‑C port in the center, and 4.0mm with the fingerprint sensor on the other. When folded, the device measures 12.9mm barely thicker than last year’s Z Fold6 despite the extra hinge and display segment.
Inside, the engineering challenges multiply. The dual Armor FlexHinges on the TriFold use a dual‑rail titanium housing to evenly distribute the structural stress across both folds. In its assembly process, Samsung checks frame evenness with precision laser scanning, followed by a pressing methodology that bonds the OLED panel to the backplate for increased rigidity. Robots test hinge performance, ensuring a perfect opening to 180‑degrees while CT scans check internal alignment. Durability claims are supported by a 200,000‑cycle multi‑folding test, equivalent to folding the device 100 times a day for five years.
Powering the TriFold is Qualcomm’s Snapdragon 8 Elite for Galaxy, paired with 16GB of RAM and 512GB of storage in the sole “Crafted Black” variant. The 5,600mAh battery the largest ever in a Samsung foldable is split across the three panels to balance weight and thermal load. Samsung cites up to 17 hours of continuous video playback with the display fully open. Charging is handled via 45W wired input and 15W wireless, a step behind Huawei’s Mate XT in raw speed but optimized for thermal stability in ultra‑thin enclosures.
The display itself is a 10‑inch LTPO AMOLED 2X panel with 2160 × 1584 resolution, adaptive 120Hz refresh down to 1Hz, and peak brightness of 1,600 nits. It allows for running three apps side‑by‑side and supports a standalone DeX desktop mode without requiring an external monitor, making the foldable a portable workstation. Unlike Huawei’s Mate XT, though, the TriFold does not include stylus support-a significant factor in productivity-focused usage.
Camera hardware is identical on the Galaxy Z Fold7: a 200MP primary with OIS, a 12MP ultrawide, and a 10MP 3× tele. Selfie cameras are 10MP on both the cover and inner screens. The back panel’s ceramic‑glass fiber‑reinforced polymer doesn’t crack easily, and IP48 water resistance provides immersion up to 1.5 meters for 30 minutes.
The Huawei Mate XT, though, does pip it in competitive terms on folded thickness (12.8mm vs. 12.9mm), and charging speeds, while offering stylus input. However, Samsung’s internal‑fold design, high refresh rate display, and advanced hinge architecture position it as a durability‑first alternative. With Apple expected to make its entry into the foldable segment towards the end of 2026, the limited run of TriFold could be Samsung’s proving ground for multi‑hinge designs ahead of the next big shake‑up this market will witness.
